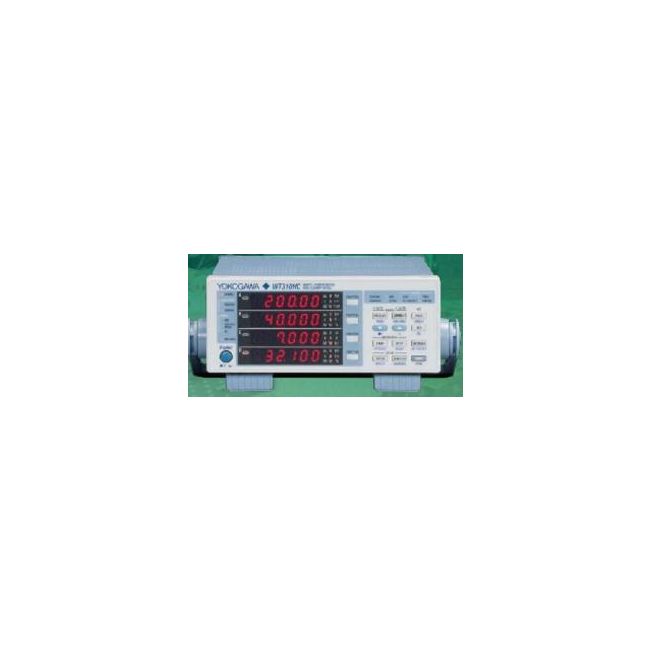

Yokogawa WT310HC
| Manufacturer | Yokogawa |
| Model | WT310HC |
| Product | Digital Power Meter, DC - 20 kHz, 40A, 1 Ch. |
Availability:
In stock
SKU
146305
YOKOGAWA WT310HC Digital Power Meter (call for availability)The Yokogawa WT310HC Digital Power Meter provides a wide cur input range, fast display, and rapid data update rate in a compact and powerful instrument. High performance and reliable power measurement make it the preferred power meter in numerous industries from production lines to R&D applications.Features and Specifications of the Yokogawa WT310HC Digital Power Meter include: Features: Specifications: High Performance and Reliability: Simultaneous Measurement of All Parameters: Fast Display and Data Update Rate: Convenient Measurement Functions: Basic accuracy of 0.1% of reading Low cur measurement Wide cur input ranges Standard USB, and GP-IB or RS-232 (selectable) and Ethernet (optional) Measures all AC and DC parameters Measures harmonics and performs integration simultaneously without changing the measurement mode Uses WTViewrFreePlus software to monitor and save parameters Provides short tact time in testing procedures Consistent basic measurement accuracy for all input ranges MAX Hold Function: Allows maximum values of RMS/PEAK voltage and cur active power, reactive power and appa power to be held Line Filter and Frequency Filter Functions: Cuts off unnecessary noise and harmonic components for fundamental waveform measurements Input Elements: 1 Input Terminal Type: Input Format: Measurement Range: Input Impedance: General Specifications: Voltage: Plug-in terminal (safety terminal) Cur: Direct input: Large binding post Voltage: Floating input through resistive voltage divider Cur: Floating input through shunt Voltage: Cur: Crest factor 3: 15V/30V/60V/150V/300V/600V Crest factor 6: 7.5V/15V/30V/75V/150V/300V Direct input: External cur sensor input (/EX1,/EX2): Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A Crest factor 3: Crest factor 6: EX1: 2.5V/5V/10V EX2: 50mV/100mV/200mV/500mV/1V/2V EX1: 1.25V/2.5V/5V EX2: 25mV/50mV/100mV/250mV/500mV/1V Voltage: Cur: Input resistance: Approx. 2 MΩ Input capacitance: Approx. 13 pF in parallel with the resistance Direct input:
- High Performance and Reliability:
- Basic accuracy of 0.1% of reading
- Low cur measurement
- Wide cur input ranges
- Standard USB, and GP-IB or RS-232 (selectable) and Ethernet (optional)
- Simultaneous Measurement of All Parameters:
- Measures all AC and DC parameters
- Measures harmonics and performs integration simultaneously without changing the measurement mode
- Uses WTViewrFreePlus software to monitor and save parameters
- Fast Display and Data Update Rate:
- Provides short tact time in testing procedures
- Consistent basic measurement accuracy for all input ranges
- Convenient Measurement Functions:
- MAX Hold Function: Allows maximum values of RMS/PEAK voltage and cur active power, reactive power and appa power to be held
- Line Filter and Frequency Filter Functions: Cuts off unnecessary noise and harmonic components for fundamental waveform measurements
- Input Elements: 1
- Input Terminal Type:
- Voltage: Plug-in terminal (safety terminal)
- Cur: Direct input: Large binding post
- Input Format:
- Voltage: Floating input through resistive voltage divider
- Cur: Floating input through shunt
- Measurement Range:
- Voltage:
- Crest factor 3: 15V/30V/60V/150V/300V/600V
- Crest factor 6: 7.5V/15V/30V/75V/150V/300V
- Cur:
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A
- External cur sensor input (/EX1,/EX2):
- Crest factor 3:
- EX1: 2.5V/5V/10V
- EX2: 50mV/100mV/200mV/500mV/1V/2V
- Crest factor 6:
- EX1: 1.25V/2.5V/5V
- EX2: 25mV/50mV/100mV/250mV/500mV/1V
- Crest factor 3:
- Direct input:
- Voltage:
- Input Impedance:
- Voltage:
- Input resistance: Approx. 2 MΩ
- Input capacitance: Approx. 13 pF in parallel with the resistance
- Cur:
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA
- At the above range setting:
- Input resistance: Approx. 500mΩ,
- Input inductance: Approx. 1uH in serieswith the resistance
- Crest factor 3: 0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 0.25A/0.5A/1A/2.5A/5A/10A
- At the above range setting:
- Input resistance: Approx. 6 mΩ + 10 mΩ max)*Factory setting
- Input inductance: Approx. 0.1uH in series with the resistance
- Direct input:
- Voltage:
- General Specifications:
- Rated supply voltage: 100 VAC to 240 VAC
- Permitted supply range voltage: 90 VAC to 264 VAC
- Rated supply frequency: 50/60 Hz
- Permitted supply voltage frequency range: 48 Hz to 63 Hz
- Maximum power consumption: 50VA
- Battery backup: Setup parameters are backed up with a lithium battery
- Basic accuracy of 0.1% of reading
- Low cur measurement
- Wide cur input ranges
- Standard USB, and GP-IB or RS-232 (selectable) and Ethernet (optional)
- Measures all AC and DC parameters
- Measures harmonics and performs integration simultaneously without changing the measurement mode
- Uses WTViewrFreePlus software to monitor and save parameters
- Provides short tact time in testing procedures
- Consistent basic measurement accuracy for all input ranges
- MAX Hold Function: Allows maximum values of RMS/PEAK voltage and cur active power, reactive power and appa power to be held
- Line Filter and Frequency Filter Functions: Cuts off unnecessary noise and harmonic components for fundamental waveform measurements
- Voltage: Plug-in terminal (safety terminal)
- Cur: Direct input: Large binding post
- Voltage: Floating input through resistive voltage divider
- Cur: Floating input through shunt
- Voltage:
- Crest factor 3: 15V/30V/60V/150V/300V/600V
- Crest factor 6: 7.5V/15V/30V/75V/150V/300V
- Cur:
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A
- External cur sensor input (/EX1,/EX2):
- Crest factor 3:
- EX1: 2.5V/5V/10V
- EX2: 50mV/100mV/200mV/500mV/1V/2V
- Crest factor 6:
- EX1: 1.25V/2.5V/5V
- EX2: 25mV/50mV/100mV/250mV/500mV/1V
- Crest factor 3:
- Direct input:
- Voltage:
- Input resistance: Approx. 2 MΩ
- Input capacitance: Approx. 13 pF in parallel with the resistance
- Cur:
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA
- At the above range setting:
- Input resistance: Approx. 500mΩ,
- Input inductance: Approx. 1uH in serieswith the resistance
- Crest factor 3: 0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 0.25A/0.5A/1A/2.5A/5A/10A
- At the above range setting:
- Input resistance: Approx. 6 mΩ + 10 mΩ max)*Factory setting
- Input inductance: Approx. 0.1uH in series with the resistance
- Direct input:
- Rated supply voltage: 100 VAC to 240 VAC
- Permitted supply range voltage: 90 VAC to 264 VAC
- Rated supply frequency: 50/60 Hz
- Permitted supply voltage frequency range: 48 Hz to 63 Hz
- Maximum power consumption: 50VA
- Battery backup: Setup parameters are backed up with a lithium battery
- Crest factor 3: 15V/30V/60V/150V/300V/600V
- Crest factor 6: 7.5V/15V/30V/75V/150V/300V
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A
- External cur sensor input (/EX1,/EX2):
- Crest factor 3:
- EX1: 2.5V/5V/10V
- EX2: 50mV/100mV/200mV/500mV/1V/2V
- Crest factor 6:
- EX1: 1.25V/2.5V/5V
- EX2: 25mV/50mV/100mV/250mV/500mV/1V
- Crest factor 3:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A
- Crest factor 3:
- EX1: 2.5V/5V/10V
- EX2: 50mV/100mV/200mV/500mV/1V/2V
- Crest factor 6:
- EX1: 1.25V/2.5V/5V
- EX2: 25mV/50mV/100mV/250mV/500mV/1V
- EX1: 2.5V/5V/10V
- EX2: 50mV/100mV/200mV/500mV/1V/2V
- EX1: 1.25V/2.5V/5V
- EX2: 25mV/50mV/100mV/250mV/500mV/1V
- Input resistance: Approx. 2 MΩ
- Input capacitance: Approx. 13 pF in parallel with the resistance
- Direct input:
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA
- At the above range setting:
- Input resistance: Approx. 500mΩ,
- Input inductance: Approx. 1uH in serieswith the resistance
- Crest factor 3: 0.5A/1A/2A/5A/10A/20A
- Crest factor 6: 0.25A/0.5A/1A/2.5A/5A/10A
- At the above range setting:
- Input resistance: Approx. 6 mΩ + 10 mΩ max)*Factory setting
- Input inductance: Approx. 0.1uH in series with the resistance
- Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA
- Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA
- At the above range setting:
- Input resistance: Approx. 500mΩ,
