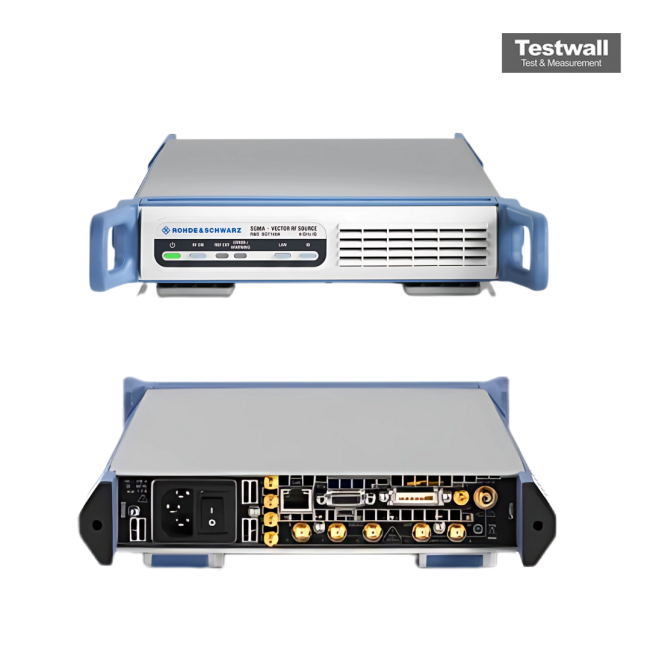

main product photo
Loading...

Rohde & Schwarz SGT100A-B106

Manufacturer

Rohde & Schwarz
€0.00
6 GHz Vector RF Source
Availability:
In stock
SKU
105478
Add to Wish List Add to Compare

Up to 12 months warranty

Optional warranty extension up to 24 months

30 day right of return

Certificate of Conformance

The R&S SGT100A-B106 is an RF vector signal generator with an integrated baseband generator. It has been optimized for use in production and automated applications.

Here are the specifications of the Rohde and Schwarz SGT100A-B106:

  • Frequency range: 1 MHz to 6 GHz, CW (no modulation)
  • Setting time: < 0.5 dB; 3 GHz < 0.9 dB
  • Output impedance: VSWR in 50 O system in full frequency range, Setting Characteristic: AUTO < 2.0
  • Setting time: with PCIe remote control, Setting Characteristic: AUTO < 500 ?s
  • Dimensions: W ? H ? D ? 250 mm ? 52.5 mm ? 401 mm (9.84 in ? 2.07 in ? 15.79 in), 1 HU, ? 19%22 rack width
  • Weight: when fully equipped 4.0 kg (8.82 lb.)

The SGT100A-B106 can be acquired for rent or purchase at Testwall. Our products are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians. Request a quote today.



< 500 ?s with PCIe remote control
  • Input frequency for external reference: 10 MHz, 13 MHz, 100 MHz, 1000 MHz Level
  • Specified level range: ?120 dBm to 15 dBm (PEP) 1)
  • Level error: Setting Characteristic: AUTO; temperature range from 18 ?C to 33 ?C: 1 MHz = f = 3 GHz < f = 12.75 GHz

    • More Information
    Model SGT100A-B106
