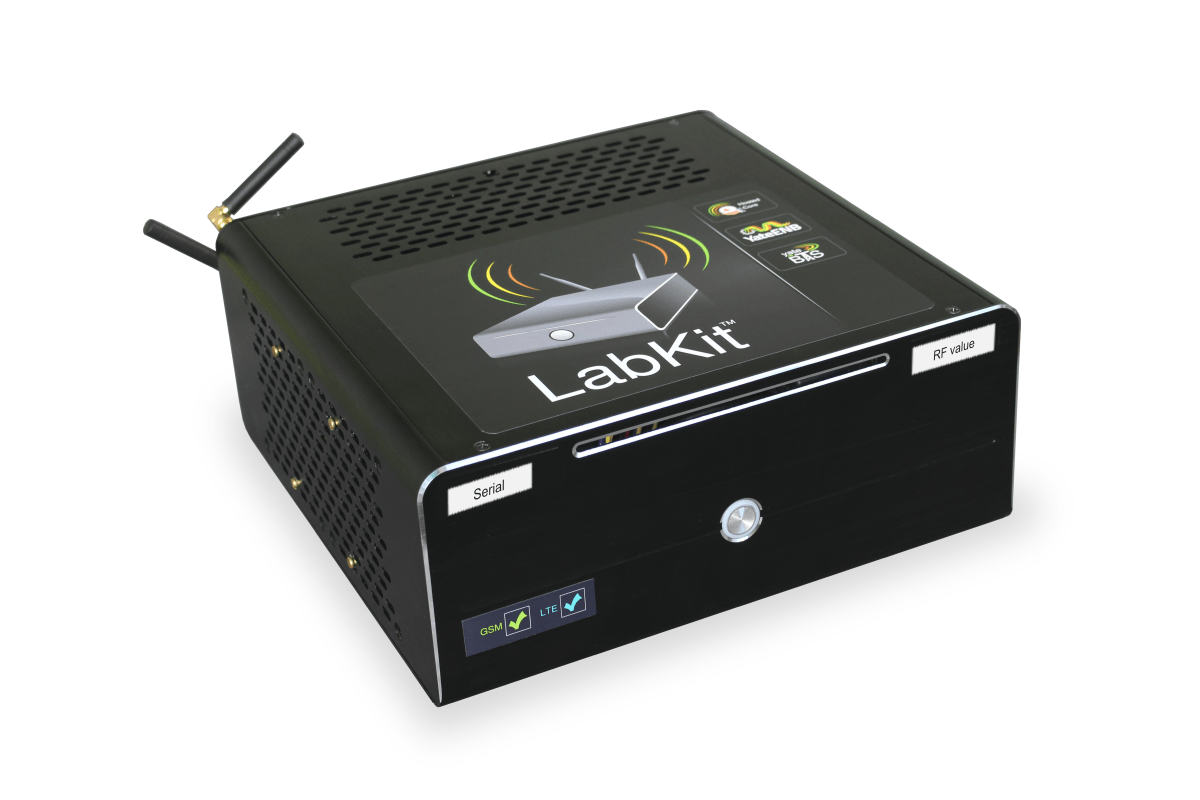

Use it as a Lab eNodeB LTE & GSM basestation on your desk, or as a test callbox on your production line.
It comes in a light package (5kg or 10 pounds, including the phones).
Includes full Wireshark integration for access under the hood the LTE protocol both on the radio part and the S1 interface (S1AP) toward the core network.
LTE LabKit with the free Hosted Core service provides the full functionality of an LTE/IMS/GSM/GPRS network.
It is intended for mobile network operators laboratory use, IoT and M2M application development, mobile phone vendors, and researchers.
The LTE LabKit used as a Lab eNodeB allows the easy and stable development of experiments and test procedures with the YateENB.
Components
The LTE LabKit is a Lab EnodeB running on a small factor PC computer that has preinstalled the following software components:
? YateENB (eNodeB)
? YateBTS (BTS)
? YateLMI (Web management interface)
LTE specifications
? Radio interface
LTE Release 12 FDD, LTE Release 12 TDD
? Available bands
filters and antennas provided for bands 5 and 8 can operate any FDD band up to 3.8 GHz
? Operating bandwidth
1.4, 2, 5, 10, 15, 20 MHz
? MAC specs
localized or distributed VRBs, proportional fairness scheduling
? Maximum connected UEs
no fixed limit
? Antenna configuration
1?1 (SISO)
? Network interface
IPv4; IPv6
? Network protocols
IP
? Output power
up to 70mW (18 dBm)
