Hioki 3332

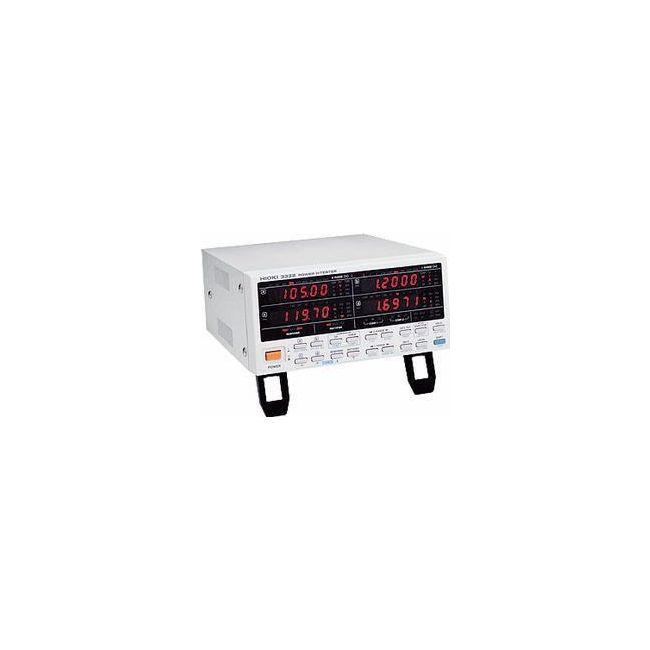

HIKOKI 3332 Power Meter (call for availability)

The Hikoki 3332 Power Meter is a needed instrument, as efficient use of energy for household and office equipment becomes more and more essential. The new Hioki 3332 Power HiTester does the job by offering a wide range of power measurement from standby to normal usage. The Hioki 3332 Power Tester delivers high accuracy of ±0.2% (45 to 66Hz), direct input up to 50A, and a broad bandwidth from 1 Hz to 100 kHz. System construction is made easy with this compact, lightweight and reasonably priced instrument, which comes equipped with an external interface as a standard feature. The Hioki 3332 can be used as a measuring component for a wide range of purposes, from research and development to equipment evaluation.

Features and Specifications of the Hioki 3332 Power Meter include:

High basic accuracy of ±0.2%

Basic Accuracy: ±0.1 % Reading. ±0.1 % Full Scale. (active power, at 45 to 66 Hz)

Responsitivity that follows transient power fluctuations

Simultaneous integration of cur and power at a 6-digit high-resolution state

Broadband feature compatible with frequency control devices

50A direct input

Measuring the effective value of basic wave components only

Cur waveform peak measurement function

Single-phase, 2-wire type that can accurately measure even standby power

Measurement of standby power under 1W

Precise calculations of minute standby power

Comparative decision function that can be used on the production line

Specifications for the Hioki 3332 include:

Measurement Lines: Single-phase / two-wire

Measurement Items: Voltage, Cur, Cur peak, Active power, Appa power, Reactive power, Power factor, Phase angle, Frequency, Power integration, Cur integration

Measurement Ranges: Voltage: 15 V to 600 V, 6 ranges

Cur: 1.0000 mA to 50.000 A, 15 ranges

Power: 15.000 mW to 30.000 kW, 90 ranges

Frequency: 1 Hz to 100 kHz, auto or 2 ranges

Integration Range: 0.00000 to ±999999 MAh/MWh, (integration time up to 10000 hours)

Wave Peak Measurement: Cur (displays maximum absolute value)

Basic Accuracy: ±0.1 % Reading. ±0.1 % Full Scale. (active power, at 45 to 66 Hz)

Frequency Characteristics: 1 Hz to 100 kHz (1 Hz to 100 kHz at 20 A or less, 1 Hz to 10 kHz at 20 A to 30 A, 50/60 Hz at 30 A to 50 A )

Signal Output: Analog level: Voltage, Cur, Active power, 5 V DC f.s.

Waveform monitor: Voltage, Cur, 1 V rms f.s.

Other Functions: Comparator function for 2 items

Scaling function (PT/CT/SC), Displays a moving average function, GP-IB/RS-232C interface

Sampling Rate: 5 times/second

Power Supply: 100 to 240 V AC, 50/60 Hz

Dimensions: 210 mm(8.27 in)W × 100 mm(3.94 in)H × 261 mm(10.28 in)D

Weight: 2.5 kg (88.2 oz)
