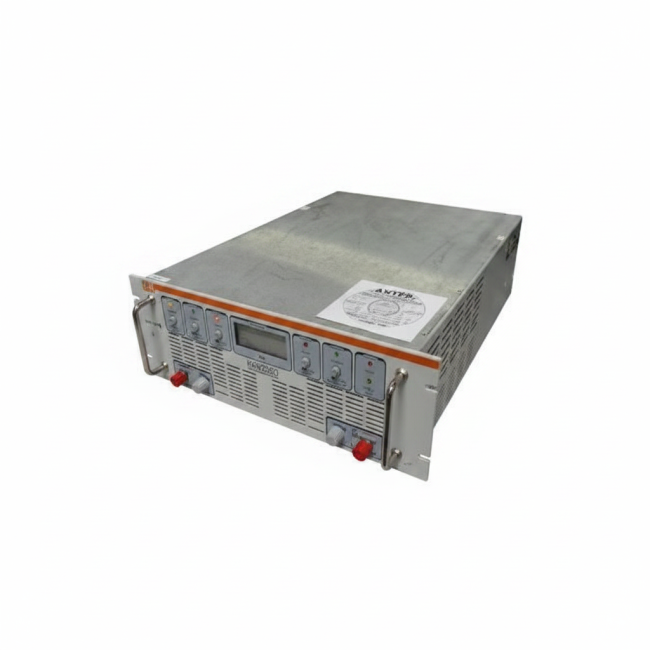

Amplifier Research (formerly Kalmus) KAW2060The Amplifier Research KAW2060 is a Class A wideband RF power amplifier delivering in excess of 100 Watts CW power into a 50-Ohm load over the frequency range of 20 MHz to 1000 MHz. Power gain is a minimum of 50 dB. GPIB control requires the optional IEEE488.2/RS232 Interface Controller Module. The system features forward and reflected power indication on a front panel-mounted, analog meter; Automatic Level Control (ALC); RF gain control; overdrive protection; full VSWR protection; input blanking, and over-temperature protection. On the basic model these features, plus remote power on/off control, are accessible for hard-wire remote operation through a 25-pin, Dsubminiature connector. The AR (formerly Kalmus) KAW2060 is a 19-inch rack-mount unit, 7 inches high and 22 inches deep. Construction is completely modular; all subassemblies are readily removable. Forced-air cooling is by a highly reliable, tube-axial fan mounted on the rear panel. The amplifier operates from 95 - 265 VAC, 47-63 Hz line. The system may be placed in 'stand-by' mode with the blanking switch, which greatly reduces energy consumption and heat generation.Secifications of the Amplifier Research KAW2060:
RATED POWER OUTPUT: 100 Watts
INPUT FOR RATED OUTPUT: 1.0 mW maximum
FLATNESS: ± 2.5 dB maximum unleveled, ± 0.5 dB leveled
FREQUENCY RESPONSE: 20 MHz - 1000 MHz instantaneously GAIN: 50 dB minimum
