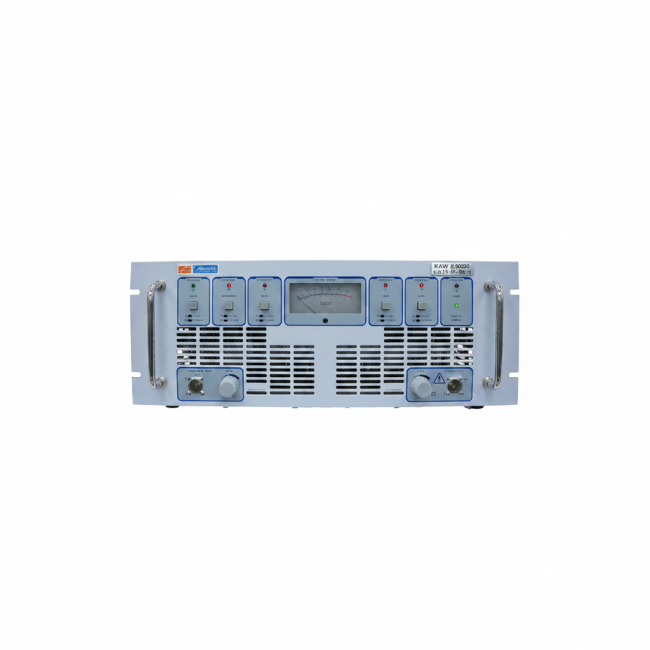

The Amplifier Research / Kalmus KAW2020 is a Class AB wideband RF power amplifier delivering in excess of 100 Watts CW power into a 50-Ohm load over the frequency range of 200 MHz to 500 MHz. Power gain is a minimum of 50 dB. GPIB control requires the optional IEEE488.2/RS232 Interface Controller Module.The Kalmus KAW2020 features forward and reflected power indication on a front panel-mounted, analog meter; Automatic Level Control (ALC); RF gain control; overdrive protection; full VSWR protection; input blanking, and over-temperature protection. On the basic model these features, plus remote power on/off control, are accessible for hard-wire remote operation through a 25-pin, Dsubminiature connector.Specifications of the Amplifier Research KAW2020 Amplifier include:
RATED POWEROUTPUT: 100 Watts
INPUT FOR RATED OUTPUT: 1.0 mW maximum
POWER OUTPUT @ 1dB COMPRESSION: 100 Watts minimum
FLATNESS: ± 2.0 dB maximum unleveled, ± 0.5 dB leveled
FREQUENCY RESPONSE: 200 MHz - 500 MHz instantaneously
GAIN: 50 dB minimum
GAIN ADJUSTMENT RANGE: 20 dB typical
INPUT IMPEDANCE: 50 Ohm nominal
OUTPUT IMPEDANCE: 50 Ohm nominal
MISMATCH TOLERANCE: infinite
PROTECTION: VSWR, over-temperature, overdrive
MODULATION CAPABILITY: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
HARMONIC DISTORTION: –25 dBc maximum -35 dBc typical
SPURIOUS OUTPUTS: –70 dBc maximum
FRONT PANEL METER: 0 - 100 Watt forward power, top scale % limit SET point reflected power, bottom scale
