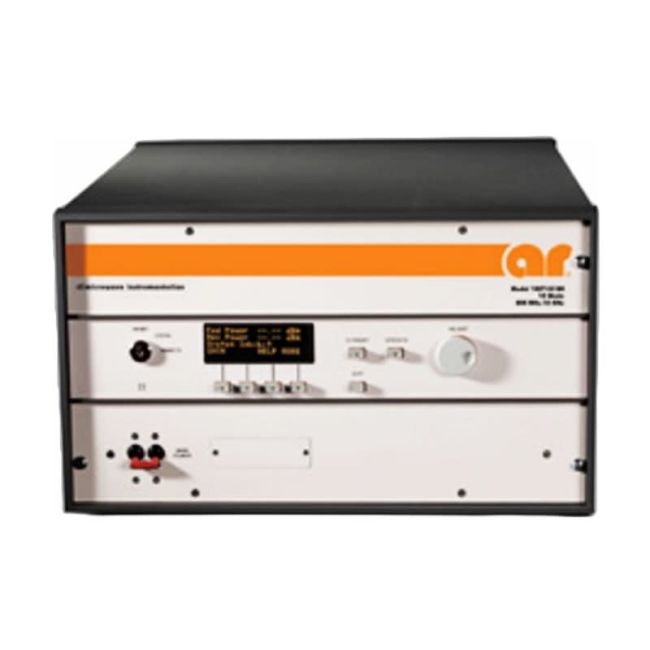

Amplifier Research 90S4G8
| Manufacturer | Amplifier Research |
| Model | 90S4G8 |
| Product | RF Amplifier 4 - 8 GHz 90W |
Availability:
In stock
SKU
120921
Amplifier Research 90S4G8 The Amplifier Research 90S4G8 is a self-contained, air-cooled, broadband amplifier designed for applications that require instantaneous bandwidth, high gain and linearity. Features and Specifications of the Amplifier Research 90S4G8 include: Features: Specifications: Provides a minimum of 90 watts of RF power when used with a sweep generator Digital Control Panel (DCP): Special features: Internal RF detector which provides an output for use in self-testing or operational modes All control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet Bus interface connectoron back panel Keylock on front panel assures positive control of local or remote operation Low spurious signals, linearity, and load tolerance make it ideal for these various uses: Expandable power, versatility, and upgrade capability Provides both local and remote control of the amplifier Uses a graphic liquid Crystal Display: Uses menu assigned softkeys Uses a single rotary knob Uses a dedicated on/off switch Offers extensive control and status reporting capability Provides operational presentation of forward power and reflected power Provides control status Provides reports of internal amplifier status Gain control Internal/external automatic level control (ALC) with front panel control of the ALC threshold Pulse input capability RF output level protection RF susceptibility testing Antenna/component testing Communication technology testing As a test instrument covering multiple frequency bands Suitable for communication technologies including CDMA, W-CDMA, TDMA, GSM, UWB, WiMAX etc. Rated power output: 90 watts minimum Power output @ 3dB compression: Power output @ 1dB compression: Flatness: Frequency response: 4.0 – 8.0 GHz instantaneously Input for rate output: 1.0 milliwatt maximum, 0 dBm Gain (at maximum setting): 49.6 dB minimum Gain adjustment (continuous range): 10 dB minimum Input impedance: 50 ohms, VSWR 2.5:1 maximum Output impedance: 50 ohms, nominal Mismatch tolerance: Modulation capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal Harmonic distortion: Minus 20 dBc maximum at 60 watts Third order intercept point: 57 dBm typical RF power display: Digital, forward and reflected Primary power: Connectors: Safety Interlock: 15 Pin Subminiature D Cooling: Forced air (self contained fans) Nominal: 100 watts Minimum: 90 watts Nominal: 90 watts Minimum: 75 watts ±1.5 dB typical ±2.5 dB maximum 100% of rated power without foldback Will operate without damage or oscillation with any magnitude and phase of source and load impedance 90-132, 180-264 VAC 50/60 Hz, single phase RF Input: Type N female on front panel RF Output: Type N female on rear panel External leveling inputs: Type BNC female on front panel Pulse modulation input: Type BNC female on front panel Detected RF output: Type BNC female on front panel Remote interfaces: IEEE-488: 24 pin female RS-232: 9 pin Subminiature D (female) RS-232 (fiber-optic): Type ST USB 2.0: Type B Ethernet: RJ-45
- Provides a minimum of 90 watts of RF power when used with a sweep generator
- Digital Control Panel (DCP):
- Provides both local and remote control of the amplifier
- Uses a graphic liquid Crystal Display:
- Provides operational presentation of forward power and reflected power
- Provides control status
- Provides reports of internal amplifier status
- Uses menu assigned softkeys
- Uses a single rotary knob
- Uses a dedicated on/off switch
- Offers extensive control and status reporting capability
- Special features:
- Gain control
- Internal/external automatic level control (ALC) with front panel control of the ALC threshold
- Pulse input capability
- RF output level protection
- Internal RF detector which provides an output for use in self-testing or operational modes
- All control functions and status indications are available remotely in GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet
- Bus interface connectoron back panel
- Keylock on front panel assures positive control of local or remote operation
- Low spurious signals, linearity, and load tolerance make it ideal for these various uses:
- RF susceptibility testing
- Antenna/component testing
- Communication technology testing
- As a test instrument covering multiple frequency bands
- Suitable for communication technologies including CDMA, W-CDMA, TDMA, GSM, UWB, WiMAX etc.
- Expandable power, versatility, and upgrade capability
- Rated power output: 90 watts minimum
- Power output @ 3dB compression:
- Nominal: 100 watts
- Minimum: 90 watts
- Power output @ 1dB compression:
- Nominal: 90 watts
- Minimum: 75 watts
- Flatness:
- ±1.5 dB typical
- ±2.5 dB maximum
- Frequency response: 4.0 – 8.0 GHz instantaneously
- Input for rate output: 1.0 milliwatt maximum, 0 dBm
- Gain (at maximum setting): 49.6 dB minimum
- Gain adjustment (continuous range): 10 dB minimum
- Input impedance: 50 ohms, VSWR 2.5:1 maximum
- Output impedance: 50 ohms, nominal
- Mismatch tolerance:
- 100% of rated power without foldback
- Will operate without damage or oscillation with any magnitude and phase of source and load impedance
- Modulation capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
- Harmonic distortion: Minus 20 dBc maximum at 60 watts
- Third order intercept point: 57 dBm typical
- RF power display: Digital, forward and reflected
- Primary power:
- 90-132, 180-264 VAC
- 50/60 Hz, single phase
- Connectors:
- RF Input: Type N female on front panel
- RF Output: Type N female on rear panel
- External leveling inputs: Type BNC female on front panel
- Pulse modulation input: Type BNC female on front panel
- Detected RF output: Type BNC female on front panel
- Remote interfaces:
- IEEE-488: 24 pin female
- RS-232: 9 pin Subminiature D (female)
- RS-232 (fiber-optic): Type ST
- USB 2.0: Type B
- Ethernet: RJ-45
- Safety Interlock: 15 Pin Subminiature D
- Cooling: Forced air (self contained fans)
- Provides both local and remote control of the amplifier
- Uses a graphic liquid Crystal Display:
- Provides operational presentation of forward power and reflected power
- Provides control status
- Provides reports of internal amplifier status
- Uses menu assigned softkeys
- Uses a single rotary knob
- Uses a dedicated on/off switch
- Offers extensive control and status reporting capability
- Gain control
- Internal/external automatic level control (ALC) with front panel control of the ALC threshold
- Pulse input capability
- RF output level protection
- RF susceptibility testing
- Antenna/component testing
- Communication technology testing
- As a test instrument covering multiple frequency bands
- Suitable for communication technologies including CDMA, W-CDMA, TDMA, GSM, UWB, WiMAX etc.
- Provides operational presentation of forward power and reflected power
- Provides control status
- Provides reports of internal amplifier status
- Nominal: 100 watts
- Minimum: 90 watts
- Nominal: 90 watts
- Minimum: 75 watts
- ±1.5 dB typical
- ±2.5 dB maximum
- 100% of rated power without foldback
- Will operate without damage or oscillation with any magnitude and phase of source and load impedance
- 90-132, 180-264 VAC
- 50/60 Hz, single phase
- RF Input: Type N female on front panel
- RF Output: Type N female on rear panel
- External leveling inputs: Type BNC female on front panel
- Pulse modulation input: Type BNC female on front panel
- Detected RF output: Type BNC female on front panel
- Remote interfaces:
- IEEE-488: 24 pin female
- RS-232: 9 pin Subminiature D (female)
- RS-232 (fiber-optic): Type ST
- USB 2.0: Type B
- Ethernet: RJ-45
- IEEE-488: 24 pin female
- RS-232: 9 pin Subminiature D (female)
- RS-232 (fiber-optic): Type ST
- USB 2.0: Type B
- Ethernet: RJ-45
