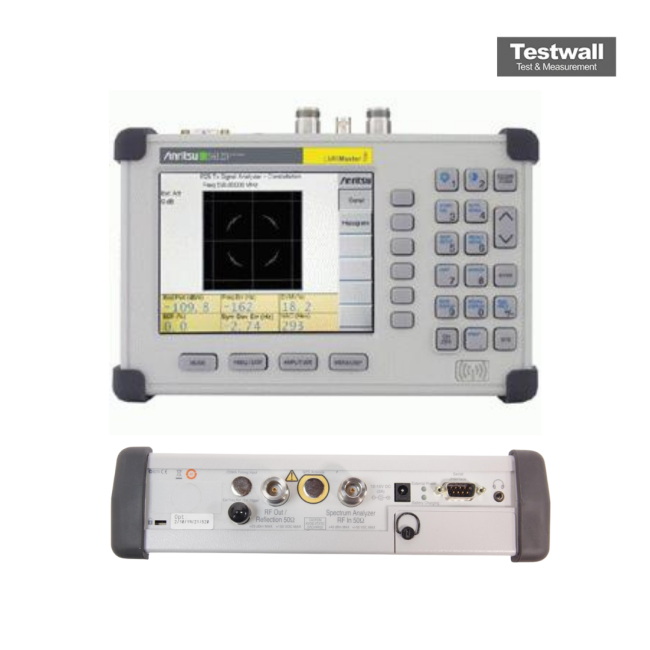

AnritsuS412D - Handheld 1600 MHz Cable, Antenna, Spectrum, Interference, and P25 / iDEN Modulation AnalyserAnritsu's S412D LMR Master is the latest addition to the successful Cell Master Cable, Antenna, and Base Station Analyser family. It builds upon Anritsu's expertise in developing accurate, portable, rugged, and easy-to-use field instrument aimed at simplifying life for field users.The AnritsuS412D LMR Master is the ideal instrument for Land Mobile Radio (LMR) and Public Safety System technicians and engineers testing the RF performance of P25 and iDEN radios in the VHF/UHF, 400 MHz, 700 MHz, and 800 MHz bands.The S412D can be configured to be equipped with a cable and  antenna Analyser, spectrum Analyser, interference Analyser, channel scanner, Received Signal Strength Indicator (RSSI), AM/FM demodulation, RF power meter, GPS receiver, and P25 Tx Signal Analyser P25 RF measurements, P25 Talk-Out Coverage Measurements, and iDEN Signal Analyser.The high performance 2 MHz to 1600 MHz cable and antenna Analyser can be used to sweep cables and antenna systems. Frequency Domain Reflectrometry (FDR) based Return Loss and VSWR measurements are used to characterize antenna systems. The Distance-To-Fault (DTF) measurement can easily spot poor connections, contamination, damaged cables, and water penetration.The fast sweep speed results in significant time savings for the technicians. FlexCal broadband calibration allows troubleshooting cable and antenna systems without multiple calibrations and calibration setups. Patented RF interference rejection enables accurate, repeatable measurements in the presence of high RF activity.The AnritsuS412D combines the high performance cable & antenna Analyser with a fully functional spectrum Analyser. The excellent DANL of -135 dBm makes this instrument ideal for finding low level signals which can interfere with LMR systems.The excellent dynamic range can be utilized in the transmission measurement option and be used to view and adjust the RF performance of critical RF devices including filters, duplexers, transmitter combiners, receiver multi-couplers and tower top amplifiers.The High Accuracy Power Meter provides true RMS measurements from 50 MHz to 6 GHz. It is the ideal solution for making accurate measurements of both CW and modulated signals. Channelized power measurements can be made with the Internal Power meter and the Channel Scanner option provides users with a convenient way to scan up to 20 channels.The AnritsuS412D LMR Master Cable, Antenna, Spectrum, Interference, and P25 / iDEN Modulation Analyser includes data analysis software, soft carrying case, rechargeable/field-replaceable battery, AC/DC power supply, 12V automobile cigarette lighter adapter and users guide.
Applications:

Cable and antenna testing for P25 and iDEN systems (Police, Emergency, Fire, Homeland Security)

Cable and antenna testing and spectrum analysis for HF, VHF, broadcasting, paging, cellular and GSM applications

Return Loss measurement

Distance-To-Fault measurement

Cable loss measurement

Low level interference measurements

Occupied BW

AM/FM demodulation

Received Signal Strength Indicator

RF Power Measurements of both CW and modulated signals

Channel Scanner

P25 Tx Signal Analyser P25 RF measurements are Received power, Frequency Error, Modulation Fidelity, Symbol Deviation, NAC and BER for 1011 Hz, and 0.153 test patterns, BER estimation from voice traffic, and MER (message error rate) measurement from control channel traffic). The LMR Master displays Constellation, Histogram and control channel hex decodes.P25 Talk-Out Coverage Measurements The LMR Master S412D supports coverage mapping with received power and BER for
1011 Hz, and 0.153 test patterns, BER estimation from voice traffic, and MER (message error rate) measurement from control channel traffic along with GPS location and time. The S412D can accurately measure BER down to realistic -110 dBm signal levels. BER coverage maps provide confidence that communications will be possible even with local interference or multipath. Displays can be automatically stored providing up to 8 hours of internally stored measurements. Master Software Tools can be used to convert stored traces as comma delimited ASCII files containing GPS location/time, RSSI, and BER.iDEN Signal Analyser includes both RF and Demodulation measurements. RF measurements include Main Channel Power, individual sub channel powers, Peak to average ratio, frequency error, Occupied Bandwidth, Cur Active slot power, ON/OFF ratio and average duty cycle. Demodulation measurements include Demod-SQE, EVM of Channel, individual sub channel EVMs and Phase Noise. In addition, the Cell Master displays the Spectrum of the signal, Adjacent Channel power ratio, power vs. time and the constellation of the demodulated signal.Features of the AnritsuS412D LMR Master include:

Handheld, battery-operated design

Weighs less than 5 lbs. (including battery)

Built-in worldwide signal standards and frequency channels

TFT color daylight viewable color display

Superior Immunity to RF interference

Excellent Noise floor

Locate long range problems with 517 data points

Variety of Power Measurement solutions for CW, modulated, channelized, and broadband measurements.

Built-in and editable Signal Standard and Cable Standard lists

Multilingual User Interface; English, French, Chinese, Japanese, Spanish, German

Intuitive and easy to use with On-Screen Test Set-Ups

Saves 15 to 40 Measurement Test Set-Ups

Saves up to 300 Measurement Traces including Talk-Out Coverage measurements

Alphanumeric Labeling of Saved Measurements

Automatic Time and Date Stamp of Saved Data

Rechargeable, Field Replaceable Battery

Distance Measurement in Feet and Meters

Information Screens Provide Cable Attenuation and Velocity of Propagation values

6 Markers, Limit Lines, and Segmented Limit Lines

RS232 Interface
